Versatility

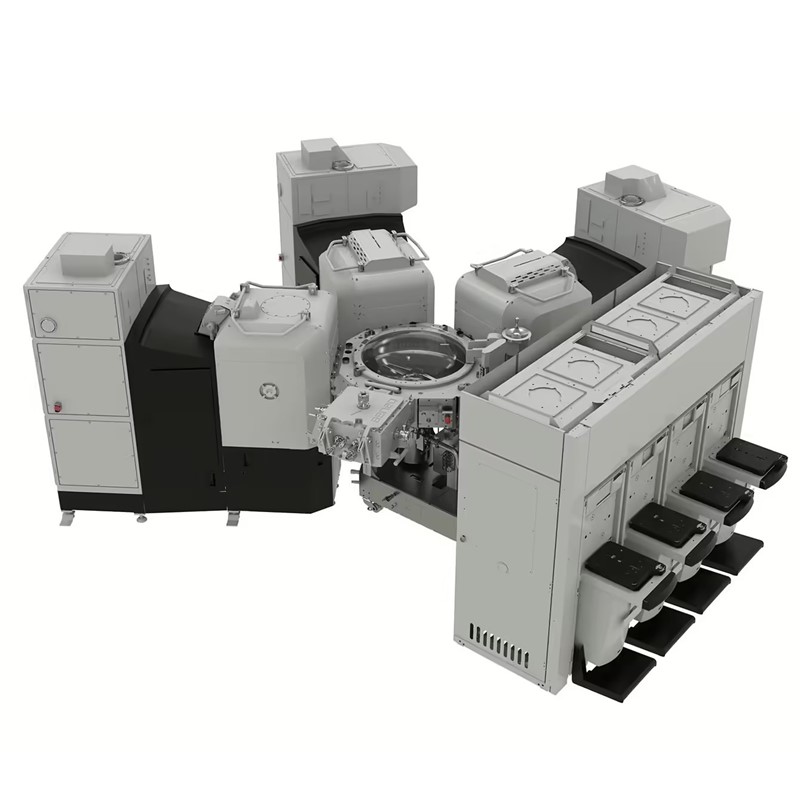

Maximum flexbility and capability. The Beneq Transform® 300 is the only 300mm ALD cluster tool offering both Thermal ALD (batch) and Plasma ALD (single wafer) technologies.
Beneq Transform 300 is a highly versatile manufacturing platform intended for IDMs and foundries dedicated to CIS, Power, Micro-OLED/LED, Advanced Packaging and other MtM applications. It is a highly configurable solution that caters to multiple advanced thin-film applications ranging from gate dielectric to passivation and/or encapsulation and beyond.
Maximum flexbility and capability. The Beneq Transform® 300 is the only 300mm ALD cluster tool offering both Thermal ALD (batch) and Plasma ALD (single wafer) technologies.
Find the right set up for you. The Transform® 300 platform is designed to meet a wide range of capacity and applications requirements including advanced packaging, chip scale package and wafer-on-tape applications.
The top tier of industry standards. This tool includes best-in-class serviceability and the shortest MTTCR available. With our proprietary pre-heating module, enjoy some of the highest throughput for thermal batch ALD.
Beneq Transform® 300 is cleanroom compatible with SECS/GEM communication capabilities and is compliant with the highest SEMI S2 and S8 standards.
| Maximum Configuration | 3 processing modules & 1 preheater |
| Preheating capability | Yes |
| Transfer module | M2C5 |
| Cooling option | Built-in |
| Substrate loading | EFEM |
| Substrate size | 300mm with 200mm bridge capability |
| Substrate | Si, Glass, and Others |
| Dimensions | 4400 x 4800 x 2250 mm |
| Host Integration | SECS/GEM |
| Batch size | Up to 25 x 300 mm wafers |
| Safety standards | SEMI S2 and S8 |
| ALD processes | Al2O3, HfO2, Ta2O5, TiO2, SiO2, ZnO, AlN, TiN |
| Processing temperature | Up to 420 °C |
| Liquid source lines | 3+1 (optional) |
| Ammonia gas line | Optional |
| Ozone gas line | Optional |
| Process control | Recipe-based; fully configurable |
| Single wafer | 300mm with 200mm bridge capability |
| Safety standards | SEMI S2 and S8 |
| ALD processes | AlN, Si3N4, SiO2, Al2O3 |
| Processing temperature | Up to 350 °C |
| Liquid source lines | 3+1 (optional) |
| Plasma gas lines | N2, O2, H2(optional) |
| Plasma pretreatment | Yes |
| Ammonia gas line | Optional |
| Ozone gas line | Optional |
| Process control | Recipe-based; fully configurable |
