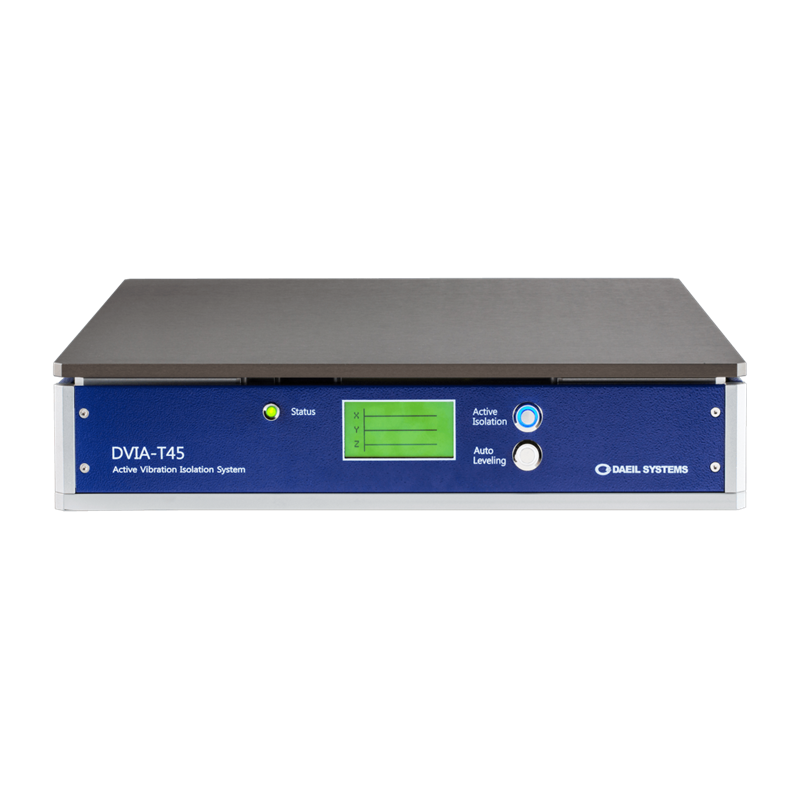

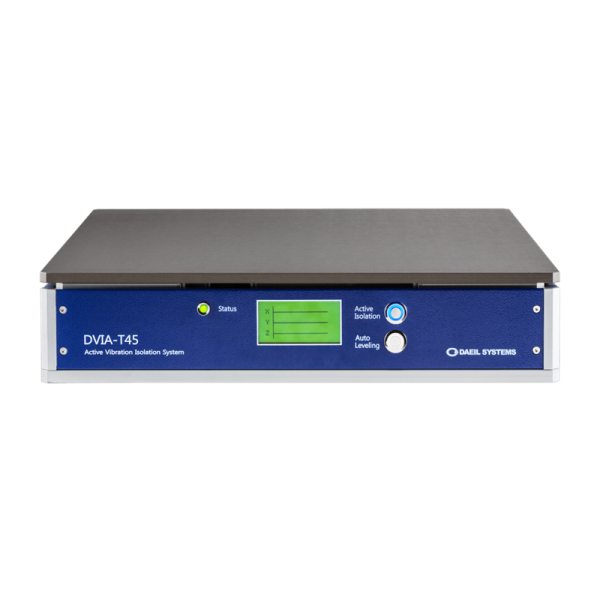

The DVIA-T is the most advanced tabletop active vibration isolation platform in the world, designed to isolate nanoscale imaging instruments from low-frequency vibrations and deliver 40 – 80% vibration isolation at 1 Hz.
The DVIA-T starts to isolate 0.5 Hz, delivering 40% – 80% vibration isolation at 1 Hz.
The DVIA-T only requires electricity to use its the active vibration isolation system.
The smallest DVIA-T is 420 × 500 × 93 mm, which weighs only 25 kg,
allowing users to hand carry and install on any place at all.
If there are changes in an environment and location or placing other instruments,
users can adjust a level of DVIA-T by simply pressing an Auto Leveling button.
All the DVIA-T requires eletricity to operate.
We take pride in our work to provide a vibration isolation system that actually reduce floor vibrations.
The UI software is provided along with the DVIA-T for users to monitor the real-time active
vibration isolation performance and floor vibration levels.
| Model | DVIA-T45 | DVIA-T56 | DVIA-T67 | DVIA-T78 | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Platform Dimensions (L x W x H) | 420 x 500 x 93 mm | 500 x 600 x 93 mm | 600 x 700 x 95 mm | 700 x 800 x 95 mm | |||||||
| Maximum Load Capacity | 90 kg / 150 kg (optional) | ||||||||||
| Actuator | Electromagnetic Actuator | ||||||||||
| Maximum Actuator Force | Vertical: 6 N, Horizontal: 3 N | ||||||||||
| Degrees of Freedom | 6 degrees | ||||||||||
| Active Isolation Range | 0.5 – 100 Hz | ||||||||||
| Vibration Isolation at 1 Hz | 40% – 80% | ||||||||||
| Vibration Isolation at ≥2 Hz | ≥90% | ||||||||||
| Input Voltage (V) | AC100 – 240V / 50 – 60 Hz / 1A | ||||||||||
| Power Consumption (W) | Less than 36 W | ||||||||||
| Operating Range | Temperature (°C) | 5 – 50 °C | |||||||||
| Humidity (%) | 20 – 90% | ||||||||||
