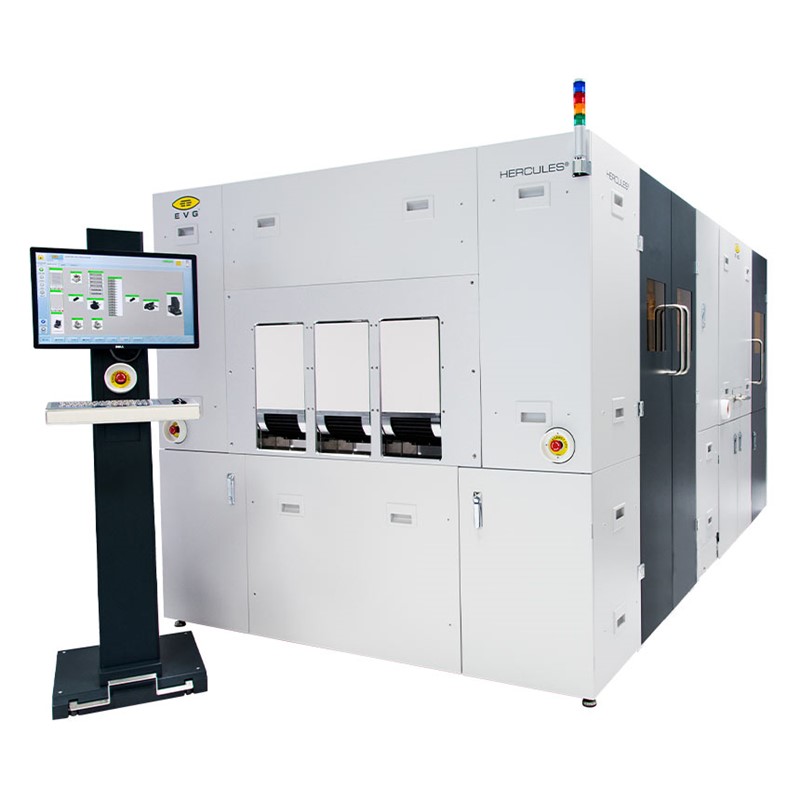

Based on a modular platform, the HERCULES combines EVG’s established optical mask alignment technology with integrated wafer cleaning, resist coating, baking and resist development modules. The HERCULES enables cassette-to-cassette processing of various wafer sizes. The HERCULES safely handles thick, highly bowed, rectangular, small-diameter wafers or even device trays. Precision top-side and bottom-side alignment as well as coating of sub-micron to ultra-thick (up to 300 microns) resists can be applied for interlayer and passivation applications. The superior alignment stage design achieves highly accurate alignment and exposure results at high throughput.
| Alignment modes |
|---|
| Top side alignment: ≤ ± 0,5 µm |
| Bottom side alignment: ≤ ± 1,0 µm |
| IR alignment: ≤ ± 2,0 µm/ substrate material depending |
| Advanced alignment features |
|---|
| Manual alignment |
| Automatic alignment |
| Dynamic alignment |
| Alignment offset correction |
| Automatic cross correction / manual cross correction |
| Large gap alignment |
| Industrial automation features |
|---|
| Cassette / SMIF / FOUP / SECS/GEM / thin, bowed, warped, edge wafer handling |
| Exposure source |
|---|
| Mercury light source / UV LED light source |
| Exposure setup |
|---|
| Vacuum contact / hard contact / soft contact / proximity mode / flex mode |
| Wedge compensation |
|---|
| Fully automatic – SW controlled |
| Contactless |
| Exposure options |
|---|
| Interval exposure / flood exposure / sector exposure |
| System control |
|---|
| Operations system: Windows |
| File sharing & back-up solution / unlimited no. recipes & parameters |
| Multi-language user GUI & support: CN, DE, FR, IT, JP, KR |
| Real-time remote access, diagnostics & troubleshooting |
