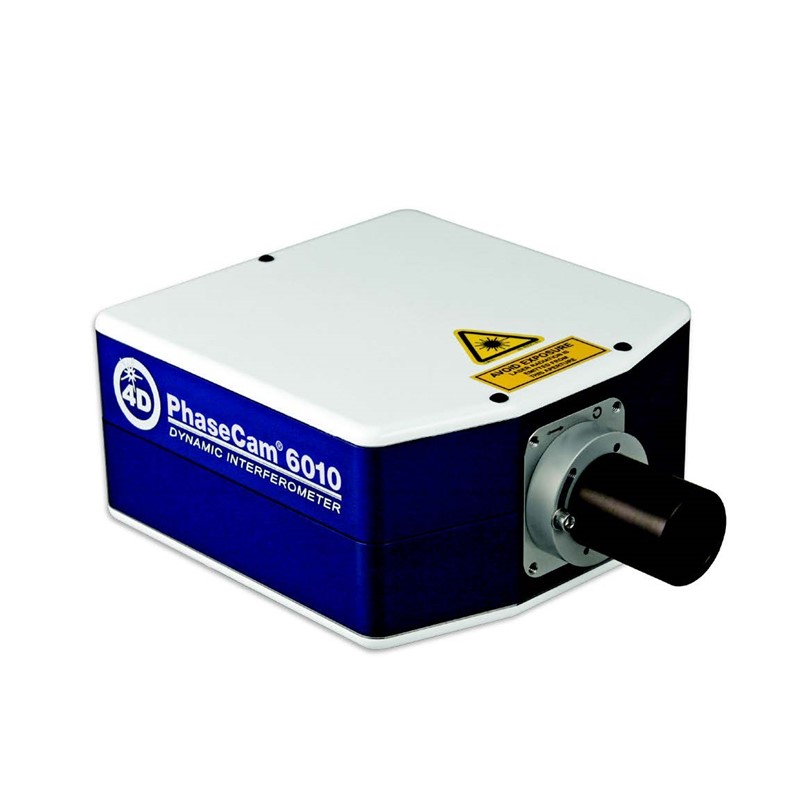

The PhaseCam® 6010 is a compact, dynamic laser interferometer operating at 632.8nm that incorporates a 4-MegaPixel camera with fully motorized control
of all internal functions. With on-axis illumination and imaging, this Twyman-Green is ideal for optical path measurement of long radius meter scale concave
mirrors, segments, telescope assemblies, collimators, and the alignment of complex optical assemblies and characterization of deformable mirrors.
The PhaseCam 6010 incorporates Dynamic Interferometry ® technology, using a single camera, high-speed optical phase sensor to make wavefront measurements in less than 30 microseconds—ove 5000 times faster than a temporal phase shifting interferometer. Because acquisition time is so short, the PhaseCam can be used under almost any conditions, without vibration isolation. This insensitivity to environmental factors makes the PhaseCam ideally suited for use on the production floor, in clean rooms and in environmental test chambers.
Compact and lightweight, the PhaseCam 6010 was designed with performance and remote measurement in mind. Moving the system to reconfigure a test set is simple and easy, and isolation equipment is not required. Fully motorized controls make it easy to operate the system in remote locations.
The PhaseCam 6010 system includes the interferometer,4Sight™ Focus advanced wavefront analysissoftware, and complete computer system. Samples with reflectivity from 1% to 100% can be measuredwith a simple adjustment. The diffraction-limitedoptical system maximizes sampling of the full aperture of the test part. Easy to use, the vibration insensitive PhaseCam 6010 ensures rapid and precise data acquisition.
Sight Focus wavefront acquisition and analysis software utilizes a user-friendly interface with unmatched simplicity, analysis features and graphical displays.
Sight’s 64-bit acquisition engine produces rapid analysis and display of single, averaged or burst measurements. Continuous data acquisition and real-time Zernike bar plots provide real-time visual feedback for simplifying optical system or beam train alignment.
The user-friendly interface makes data comparison, manipulation, masking, reference subtraction, filtering and terms removal simple to perform. Zernike, Seidel, geometric and diffraction analyses are standard. Comprehensive data sharing capabilities let you read, write, and save most file types, including Zemax, MatLab, Vision, MetroPro, HDF5 and CodeV.
Turn-key vibration insensitive dynamic operation
Superior instrument transfer function
Fast data acquisition
Continuously adjustable sample reflectivity compensation
Meter-class telescope optics
Large imaging system alignment
Vacuum and environmental chamber testing
Production floor quality control
Testing computer generated holograms
