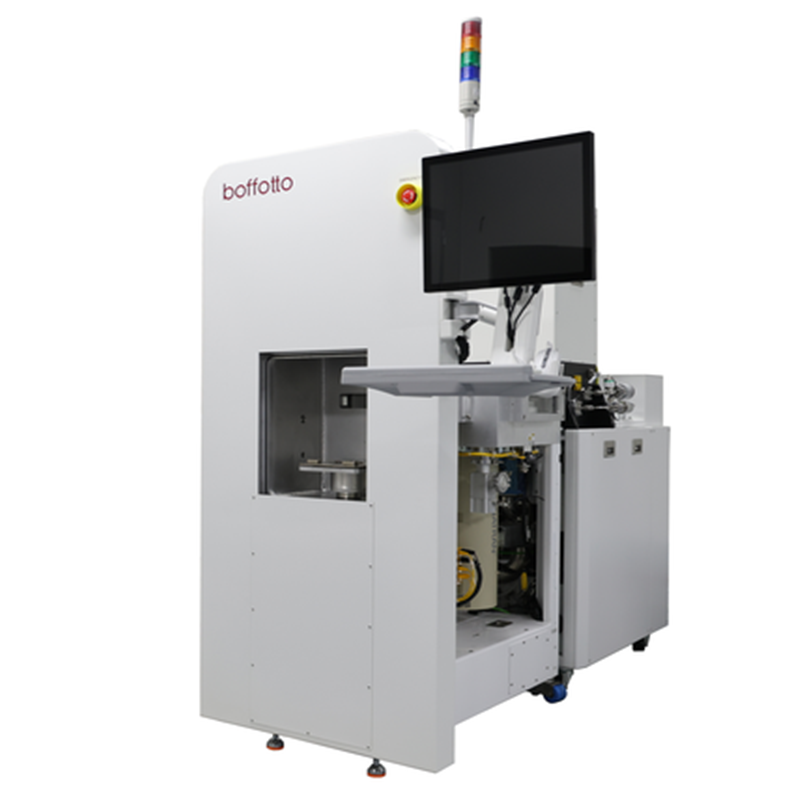

Features:
Equipment characteristics
Low plasma damage on the wafer surface;
High vacuum transfer platform for better particle control;
Supports PR strip of normal thickness wafers and Taiko thin wafer wafers;
High PR strip rate, high production throughput, and long MTBC;
Develop software based on Windows operate system, with a friendly UI interface;
Process application
Wafersize: 4/6/8 inches wafer
Applicable materials: photoresist, PI
Applicable fields: Integrated circuits, power semiconductors, compound semiconductors,scientific research, etc
